## Field trip - nullcon HackIM CTF Berlin 2025 Write-up
**Challenge:** Field trip
**Category:** Crypto
**Points:** 329
**Author:** LTFZP
## Intro

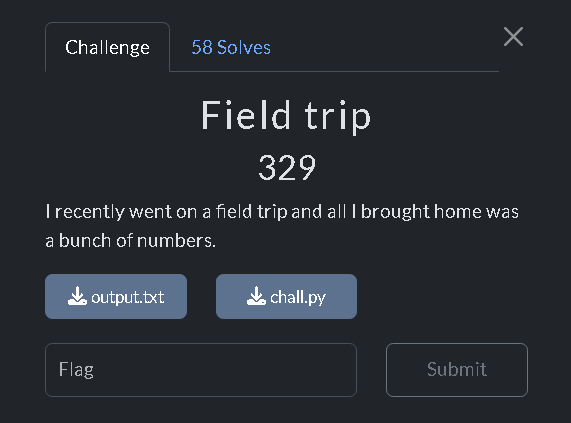

When I first opened the challenge description it only said:
> “I recently went on a field trip and all I brought home was a bunch of numbers.”
At first glance it looked innocent. But of course, “numbers” in a crypto challenge usually mean trouble. Let’s see what we actually brought home.
## Scanning
First things first, let's break down the provided [**chal.py**](https://writeups.thebusfactoris1.online/assets/files/trip/trip.py) script.
```py
#!/bin/python3
from hashlib import sha256
from Crypto.Util import number
from Crypto.Cipher import AES
BITS = 224
# This is our irreducible polynomial for GF(2^224)
f = 26959946667150639794667015087019630673637144422540572481103610249993
g = 7 # The generator
# Custom functions for field arithmetic
def reduce(a):
while (l := a.bit_length()) > 224:
a ^= f << (l - 225)
return a
def mul(a,b):
# ... implementation ...
return reduce(res)
def pow(a,n):
# ... implementation ...
return res
if __name__ == '__main__':
a = number.getRandomNBitInteger(BITS) # Alice's secret
A = pow(g,a) # Alice's public key
print(A)
b = number.getRandomNBitInteger(BITS) # Bob's secret
B = pow(g,b) # Bob's public key
print(B)
K = pow(A,b) # Shared secret
assert K == pow(B,a)
key = sha256(K.to_bytes(28)).digest() # AES key from shared secret
flag = open('../meta/flag.txt','r').read().encode()
# Encrypt the flag
print(AES.new(key, AES.MODE_ECB).encrypt(flag + b'\x00' * (16 - len(flag) % 16)).hex())
```
Okay, what are we looking at?
* It's a **Diffie-Hellman key exchange**. Alice and Bob (or in this case, the script itself) agree on a generator `g` and a field. They each pick a secret number (`a` and `b`), compute public keys (`A = g^a` and `B = g^b`), and then derive a shared secret `K`.
* The math isn't happening modulo a prime `p`. Instead, it's happening in a **binary finite field**, GF(2
224
). The number `f` is the irreducible polynomial that defines this field. The custom `mul` and `reduce` functions implement polynomial multiplication and reduction.
* The shared secret `K` is hashed with SHA256 to create an AES key, which then encrypts the flag.
* The output file gives us the public keys `A`, `B`, and the encrypted flag.
Our task, is to find the secret exponent `a`. Once we have `a`, we can calculate the shared secret $K = B^a$, derive the AES key, and decrypt the flag. This is the classic **Discrete Logarithm Problem (DLP)**.
The group order is $|G| = 2^{224} - 1$. This number is massive (around $2.69 \\times 10^{67}$). A direct attack is completely out of the question. We need a smarter approach.
## Process
### Pohlig-Hellman
When you see a `DLP` in a group with a huge, non-prime order, your first thought should be the [**Pohlig-Hellman algorithm**](https://math.stackexchange.com/questions/3260409/solving-dlp-using-the-method-of-pohlig-hellman). This algorithm is a lifesaver. It breaks down one massive DLP into several smaller, manageable DLPs. It works if the order of the group, $N = |G|$, can be factored into small prime powers.
The strategy is:
1. **Factor the group order** $N = 2^{224} - 1$.
2. For each prime factor $p\_i$ of $N$, solve the DLP in the subgroup of order $p\_i$. This will give us $a \\pmod{p\_i}$.
3. Use the **Chinese Remainder Theorem (CRT)** to combine all the results ($a \\pmod{p\_i}$) to recover the full secret `a`.
### Step 1: Factoring the Order
Time to fire up an online tool like [`factordb.com`](http://factordb.com/). Factoring $N = 2^{224} - 1$ gives us:
```py
{
3: 0,
5: 4,
17: 4,
29: 24,
43: 32,
113: 37,
127: 125,
257: 59,
449: 286,
2689: 1882,
5153: 4699,
65537: 64291,
15790321: 965000,
183076097: 103765144,
54410972897: 15098735073
}
```
Most of these factors are small enough to deal with easily. However, we have one big boy at the end: $p\_{big} = 358429848460993$.
### The Small Fries
For each small prime factor $p\_i$, we need to find $a \\pmod{p\_i}$. The Pohlig-Hellman algorithm tells us how. We transform the original equation $A = g^a$ into a new one within a subgroup of order $p\_i$.
Let $N = p\_i \\cdot m$. We can raise both sides to the power of $m$:
$A^m = (g^a)^m = (g^m)^a$
Now, let $A' = A^m$ and $g' = g^m$. Our new problem is to find $a' = a \\pmod{p\_i}$ by solving $A' = (g')^{a'}$. This is a DLP in a much smaller group of order $p\_i$. For the smaller factors, we can just brute-force this.
### Pollard's Rho
The largest prime factor, $p\_{big} \\approx 3.58 \\times 10^{14}$, is too big for brute force. This is where we need a more advanced algorithm: [**Pollard's Rho algorithm**](https://writeups.thebusfactoris1.online/assets/files/trip/ph.pdf).
Pollard's Rho is an ingenious method for finding discrete logs with a time complexity of roughly $O(\\sqrt{p})$, where $p$ is the order of the group. In our case, that's $O(\\sqrt{p\_{big}}) \\approx \\sqrt{3.58 \\times 10^{14}} \\approx 1.9 \\times 10^7$ iterations. That's totally doable\!
The algorithm works by taking a "pseudo-random walk" through the group and looking for a collision. This is often visualized using Floyd's cycle-finding algorithm, also known as the "tortoise and the hare." We have two pointers traversing the walk, one moving twice as fast as the other. When they land on the same value, we've found a cycle, and this collision gives us an equation that we can solve to find the discrete log.
Here's a simplified look at the Pollard's Rho implementation from the solver script to tackle the DLP in the subgroup of order $p\_{big}$.
```python
def pollard_rho_log(g1, A1, order, ...):
# This function defines the "random walk"
def f(state):
v, a, b = state
# ... rules to update v, a, b based on v ...
# e.g., v = mul(v, g1), v = mul(v, A1), or v = mul(v, v)
return (v, a, b)
# Initialize tortoise and hare at the start of the walk
tort = (v0, a0, b0)
hare = f(tort)
while True:
tort = f(tort)
hare = f(f(hare)) # Hare moves twice as fast
if tort[0] == hare[0]: # A collision!
# ... solve for the discrete log using the exponents ...
return x
```
Running this takes a while (about 50 minutes on my machine\!), but it eventually spits out the value of $a \\pmod{p\_{big}}$.
### Final Assembly
Now we have a system of congruences:
* $a \\equiv a\_1 \\pmod{p\_1}$
* $a \\equiv a\_2 \\pmod{p\_2}$
* ...
* $a \\equiv a\_{big} \\pmod{p\_{big}}$
The [**Chinese Remainder Theorem (CRT)**](https://en.wikipedia.org/wiki/Chinese_remainder_theorem)is the perfect tool to stitch these pieces back together into the one and only solution for `a` modulo $N$.
### Decryption
With the full secret exponent `a` recovered, the rest is straightforward:
1. Calculate the shared secret: $K = B^a$.
2. Hash it to get the AES key: `key = sha256(K_bytes).digest()`.
3. Initialize the AES cipher and decrypt the ciphertext.
Here's a solver script:
```py
from hashlib import sha256
from Crypto.Cipher import AES
import random, time, math
BITS = 224
f_poly = 26959946667150639794667015087019630673637144422540572481103610249993
g = 7
def reduce_field(a):
while a.bit_length() > BITS:
l = a.bit_length()
a ^= f_poly << (l - 225)
return a
def mul(a,b):
res = 0
bb = b
i = 0
while bb:
if bb & 1:
res ^= (a << i)
bb >>= 1
i += 1
return reduce_field(res)
def pow_field(a, n):
res = 1
exp = a
while n > 0:
if n & 1:
res = mul(res, exp)
exp = mul(exp, exp)
n >>= 1
return res
A = 22740222493854193828995311834548386053886320984395671900304436279839
B = 13537441615011702013355237281886711701217244531581593794890884829133
ct = bytes.fromhex("9946ca81ffb1a741cff186a38ecbb4ddcf0e912764413642641fab7db83278a31268b5dc13e66cd86990ab1b65b73465")
q = 2**224 - 1
factors = [3,5,17,29,43,113,127,257,449,2689,5153,65537,15790321,183076097,54410972897,358429848460993]
residues = {
3: 0,
5: 4,
17: 4,
29: 24,
43: 32,
113: 37,
127: 125,
257: 59,
449: 286,
2689: 1882,
5153: 4699,
65537: 64291,
15790321: 965000,
183076097: 103765144,
54410972897: 15098735073
}
p_big = 358429848460993
def pollard_rho_log(g1, A1, order, max_iters=100_000_000):
def f(state):
v,a,b = state
r = v & 0x7
if r < 2:
v = mul(v, g1)
a = (a + 1) % order
elif r < 4:
v = mul(v, A1)
b = (b + 1) % order
elif r < 6:
v = mul(v, v)
a = (2*a) % order
b = (2*b) % order
else:
v = mul(v, mul(g1, A1))
a = (a + 1) % order
b = (b + 1) % order
return (v,a,b)
a0 = random.randrange(order)
b0 = random.randrange(order)
v0 = mul(pow_field(g1, a0), pow_field(A1, b0))
tort = (v0, a0, b0)
hare = f(tort)
steps = 0
while True:
tort = f(tort)
hare = f(f(hare))
steps += 1
if tort[0] == hare[0]:
a1,b1 = tort[1], tort[2]
a2,b2 = hare[1], hare[2]
r = (a1 - a2) % order
s = (b2 - b1) % order
if s % order == 0:
return None
inv_s = pow(s, -1, order)
x = (r * inv_s) % order
return x
if steps % 1000000 == 0:
print("Pollard steps:", steps)
if steps > max_iters:
return None
print("Preparing subgroup for p_big...")
exp = q // p_big
g1 = pow_field(g, exp)
A1 = pow_field(A, exp)
print("Starting Pollard-Rho for p_big (order ~ {})".format(p_big))
start = time.time()
x_large = pollard_rho_log(g1, A1, p_big, max_iters=40_000_000) # adjust max_iters if needed
elapsed = time.time() - start
print("Pollard result:", x_large, "time:", elapsed, "seconds")
if x_large is None:
print("Pollard failed or reached iteration limit. You can re-run with larger max_iters.")
exit(0)
residues[p_big] = x_large
print("Recovered residue:", x_large)
primes = list(residues.keys())
moduli = primes
remainders = [residues[p] for p in primes]
def crt_pair(a1, n1, a2, n2):
m = pow(n1, -1, n2)
t = ((a2 - a1) * m) % n2
x = a1 + n1 * t
return x % (n1*n2), n1*n2
x_total = remainders[0]
M = moduli[0]
for i in range(1, len(moduli)):
x_total, M = crt_pair(x_total, M, remainders[i], moduli[i])
print("a (0 <= a < q):", x_total)
A_check = pow_field(g, x_total)
print("A_check == A ?", A_check == A)
K = pow_field(B, x_total)
K_bytes = K.to_bytes(28, 'big')
key = sha256(K_bytes).digest()
cipher = AES.new(key, AES.MODE_ECB)
pt = cipher.decrypt(ct)
pt = pt.rstrip(b'\x00')
print("Plaintext (raw bytes):", pt)
print("Plaintext:", None if b'\x00' in pt else pt.decode('utf-8', errors='replace'))
```
Let's run the full solver.
```bash
$ python3 solve.py
Starting Pollard-Rho for p_big (order ~ 358429848460993)
Pollard steps: 1000000
Pollard steps: 2000000
Pollard steps: 3000000
Pollard steps: 4000000
Pollard steps: 5000000
Pollard steps: 6000000
Pollard steps: 7000000
Pollard steps: 8000000
Pollard steps: 9000000
Pollard steps: 10000000
Pollard steps: 11000000
Pollard result: 17647135938227 time: 3009.7346289157867 seconds
Recovered residue for p_big: 17647135938227
Recovered exponent a (0 <= a < q): 19304722128197700500806739139164244735096547731206137123982781068619
A_check == A ? True
Plaintext (raw bytes): b'ENO{1t_i5_no1_th3_fi3ld_5iz3_th4t_c0unts}\n'
Plaintext (utf-8, if text): ENO{1t_i5_no1_th3_fi3ld_5iz3_th4t_c0unts}
```
Success\! We got the flag. Turns out, it's not the field size that counts, but how you factor it. ?
## FLAG
```bash
FLAG : ENO{1t_i5_no1_th3_fi3ld_5iz3_th4t_c0unts}
```
